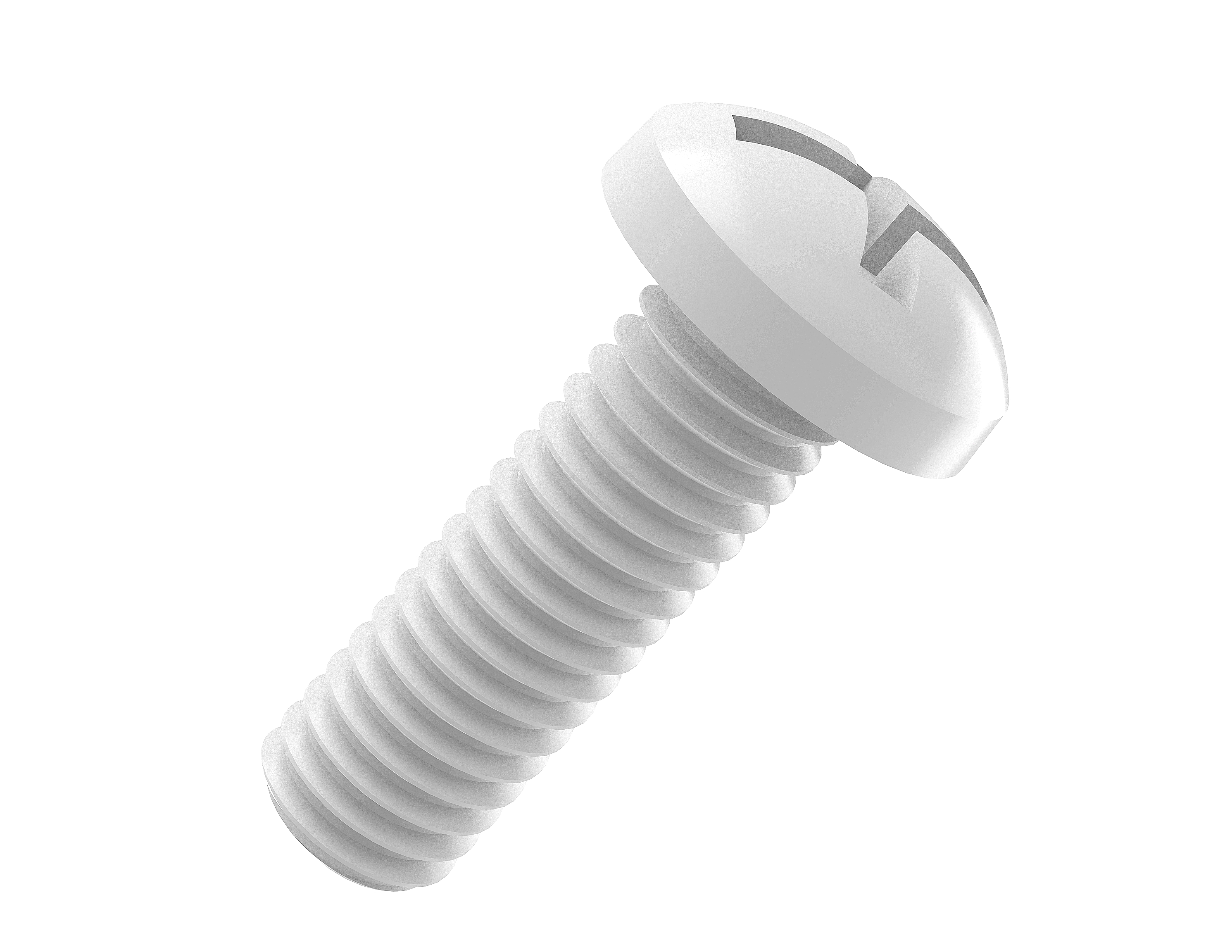

AH0062-NY Nylon Phillips Pan Head Machine Screws
Metric DIN 7985

Nylon Phillips Pan Head Machine Screw designed for use with cross-recessed (Phillips) screwdrivers, our metric nylon pan head screws are manufactured from high-performance Nylon 66 (PA66) and produced in accordance with DIN 34812 (previously DIN 7985, now aligned with ISO 7045). For alternative drive requirements, equivalent screws are also available in a slotted pan-head configuration, manufactured to DIN 85 (EN ISO 1580) AH0061-NY, suitable for use with flat-blade screwdrivers.

Nylon Phillips Pan Head Machine Screws
Metric DIN 7985

Nylon Phillips Pan Head Machine Screws
Metric DIN 7985

Please select your thread size to activate the dimensional functionality

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.004-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

4mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3.7mm +0.30

1.1mm +0.20

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.004-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

4mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M2.5.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4.7mm +0.30

1.3mm +0.20

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.004-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

4mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.013-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

13mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M3.040-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.3mm +0.30

1.6mm +0.20

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.004-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

4mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.015-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

15mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M4.040-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7.6mm +0.40

2.2mm +0.20

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M5.040-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

9.1mm +0.40

2.7mm +0.30

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.022-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

22mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.040-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.045-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

45mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.050-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

50mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M6.060-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

11.5mm +0.50

3.3mm +0.30

60mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.040-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.045-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

45mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M8.050-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

15.5mm +0.50

4.5mm +0.30

50mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M10.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

19.4mm +0.60

5.7mm +0.30

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M10.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

19.4mm +0.60

5.7mm +0.30

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M10.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

19.4mm +0.60

5.7mm +0.30

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0062-M10.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

19.4mm +0.60

5.7mm +0.30

30mm

-35 to +85°C

Nylon 66 UL94-V2

bottom of page
