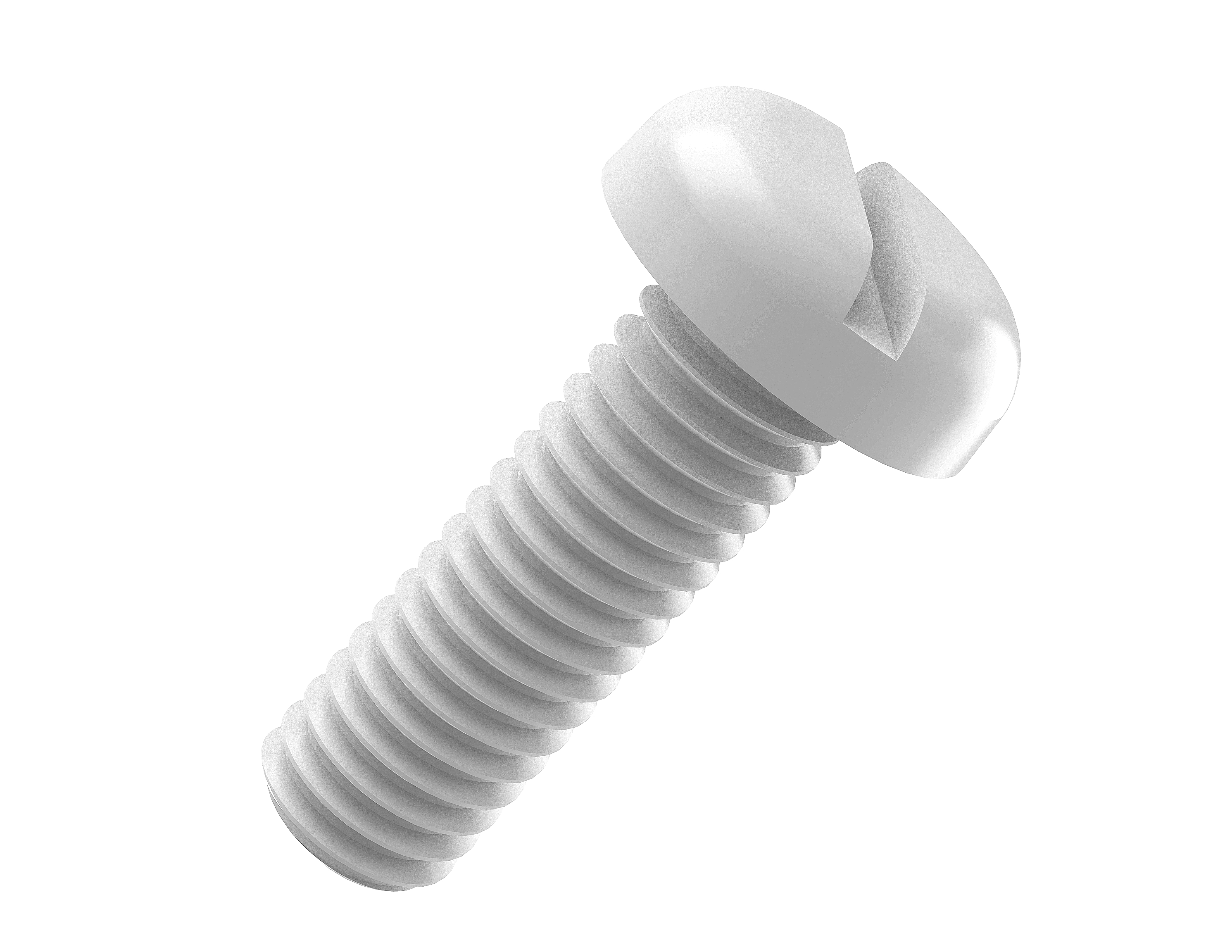

AH0061-NY Nylon Slotted Pan Head Machine Screws DIN 85
Nylon Slotted Pan Head Machine Screw made from Nylon (PA66), manufactured in accordance with DIN 85. Nylon metric screws are typically used in pre-tapped holes or with metric nuts for assembling components in electrical, mechanical, and light-duty applications. Manufactured from Nylon 66 (PA66), these screws offer excellent resistance to corrosion and chemicals, along with a high strength-to-weight ratio. The material is also non-magnetic and electrically insulating, with low thermal conductivity, making it suitable for environments where metal fasteners may cause interference or conductivity issues. For alternative drive requirements, equivalent screws are also available in a Phillips pan-head configuration, manufactured to DIN 7985 (EN ISO 7045), AH0062-NY.
Please select your thread size to activate the dimensional functionality
AH0061-M2.004-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
4mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.005-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
5mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.006-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
6mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.008-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
8mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.010-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
10mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.012-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
12mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2
3.8mm
1.3mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.004-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
4mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.005-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
5mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.006-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
6mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.008-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
8mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.010-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
10mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.012-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
12mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M2.5.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M2.5
5.0mm
1.5mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.004-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
4mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.005-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
5mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.006-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
6mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.008-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
8mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.010-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
10mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.012-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
12mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.030-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
30mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M3.035-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M3
6.0mm
1.8mm
35mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.006-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
6mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.008-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
8mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.010-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
10mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.012-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
12mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.030-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
30mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.035-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
35mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M4.040-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M4
8.0mm
2.4mm
40mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.006-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
6mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.008-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
8mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.010-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
10mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.012-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
12mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.030-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
30mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.035-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
35mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M5.040-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M5
10.0mm
3.0mm
40mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.005-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
5mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.008-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
8mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.010-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
10mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.012-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
12mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.030-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
30mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.035-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
35mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.040-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
40mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.045-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
45mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.050-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
50mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.060-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
60mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.070-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
70mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M6.075-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M6
12.0mm
3.6mm
75mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.010-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
10mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.030-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
30mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.035-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
35mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.050-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
50mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M8.070-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M8
16.0mm
4.8mm
70mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M10.016-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M10
20.0mm
6.0mm
16mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M10.020-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M10
20.0mm
6.0mm
20mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M10.025-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M10
20.0mm
6.0mm
25mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M10.030-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M10
20.0mm
6.0mm
30mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M10.035-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M10
20.0mm
6.0mm
35mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M10.050-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M10
20.0mm
6.0mm
50mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
AH0061-M10.060-NY
Thread Size D1:
Head Diameter D2:
Head Length H1:
Thread Length L1:
Slotted W1:
Operating Temperature:
Material:
M10
20.0mm
6.0mm
60mm
W1
–35°C to +85°C
Nylon 66 (PA66) UL94-V2
