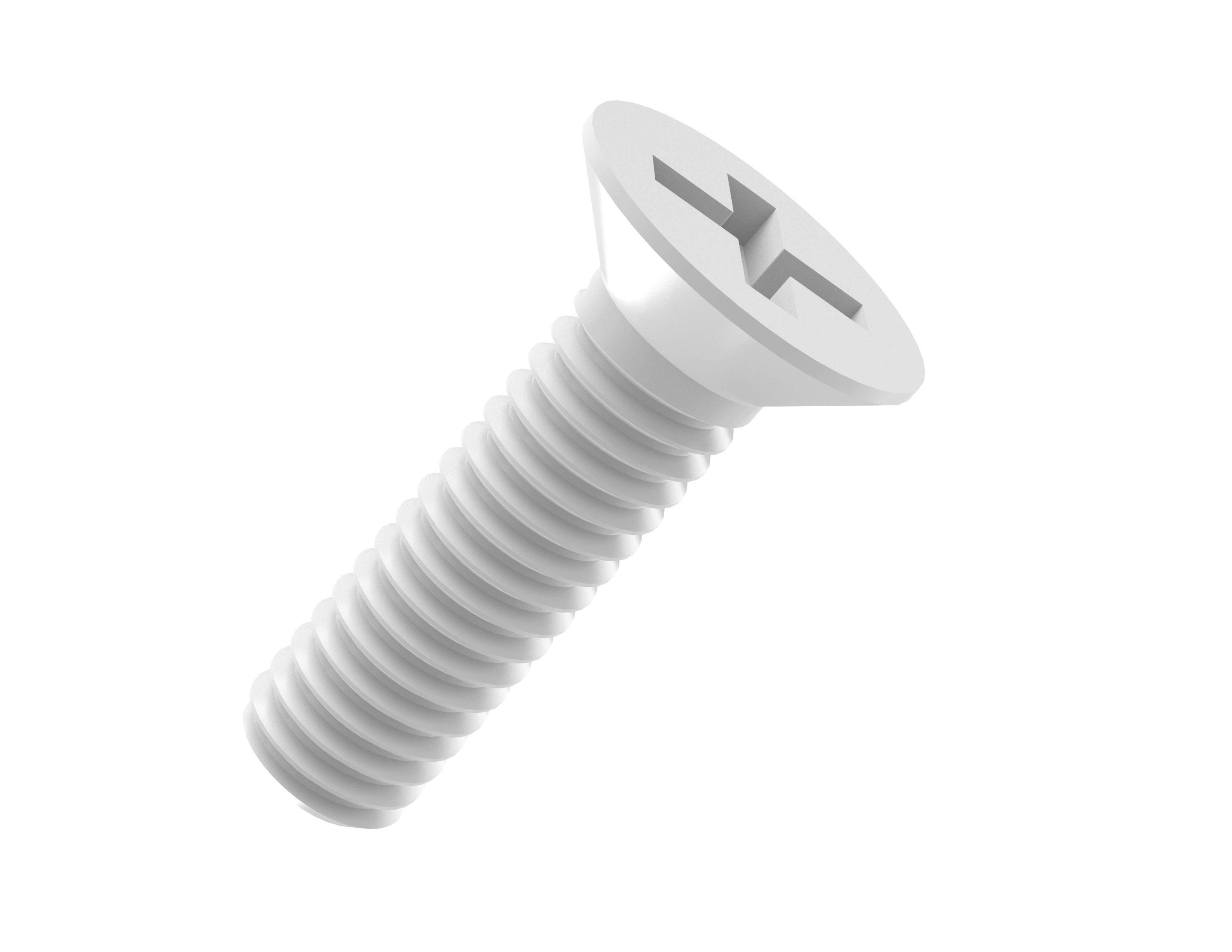

AH0065-NY Nylon Phillips Countersunk Head
Machine Screws DIN 965

Nylon Phillips countersunk-head machine screws are precision-engineered fasteners designed to sit flush within countersunk holes, delivering a clean, professional finish. Manufactured from high-grade Nylon 66 (PA66), these screws combine strength with lightweight performance, offering excellent resistance to corrosion and chemicals, as well as low electrical conductivity. For alternative drive requirements, equivalent screws are also available in a slotted countersunk configuration, manufactured to DIN 963

AH0064-NY, suitable for use with flat-blade screwdrivers.

Nylon Phillips Countersunk Machine Screws DIN 965

Nylon Phillips Countersunk Machine Screws DIN 965

Please select your thread size to activate the dimensional functionality

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

5mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

6mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

8mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

10mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

12mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

16mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

20mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

25mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

5mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

6mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

8mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

10mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

12mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

16mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

20mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M2.5.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

25mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.005-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

5mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

6mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

8mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

10mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

12mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

16mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

20mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

25mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

30mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M3.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M3

5.6mm

1.7mm

35mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.006-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

6mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.008-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

8mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

10mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

12mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

16mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

20mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

25mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

30mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M4.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M4

7.5mm

2.7mm

35mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M5.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M5

9.2mm

2.7mm

10mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M5.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M5

9.2mm

2.7mm

12mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M5.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M5

9.2mm

2.7mm

16mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M5.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M5

9.2mm

2.7mm

20mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M5.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M5

9.2mm

2.7mm

25mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M5.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M5

9.2mm

2.7mm

30mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M5.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M5

9.2mm

2.7mm

35mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

10mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

12mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

16mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

20mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

25mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

30mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

35mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M6.040-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M6

11mm

3.3mm

40mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.010-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

10mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.012-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

12mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.016-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

16mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.020-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

20mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.025-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

25mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.030-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

30mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.035-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

35mm

–35°C to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0065-M8.040-NY

Thread Size D1:

Head Diameter D2:

Head Length H1:

Length L1:

Operating Temperature:

Material:

M8

14.5mm

4.7mm

40mm

–35°C to +85°C

Nylon 66 UL94-V2

bottom of page
