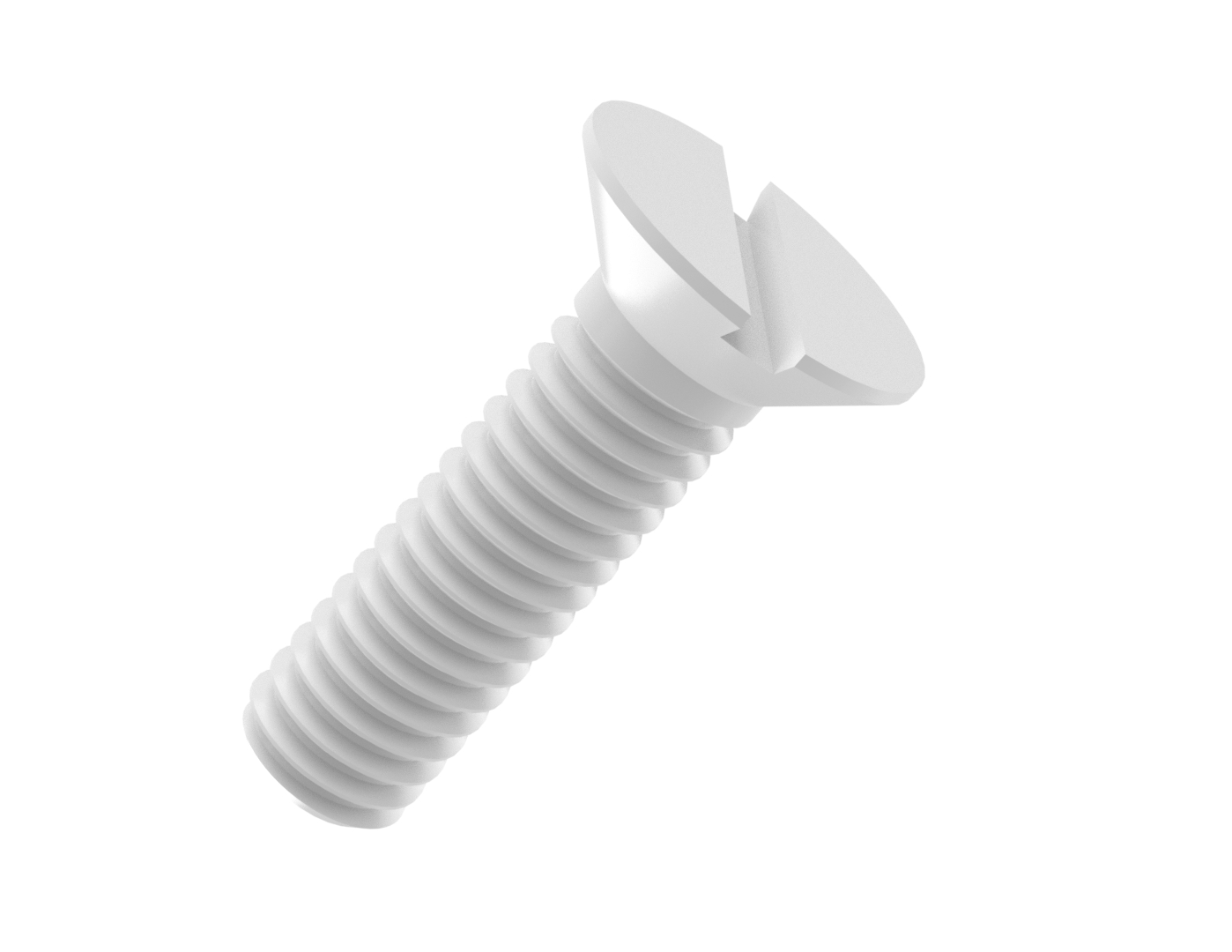

AH0064-NY Nylon Slotted Countersunk Head Machine Screws DIN 963

Manufactured from high-quality Nylon (PA66) in accordance with DIN 963, these metric screws are designed for use with pre-threaded holes or in combination with metric nuts. Ideal for electrical, mechanical, and light-duty assemblies.

Nylon 66 offers excellent resistance to corrosion and chemicals, along with a strong yet lightweight construction. The material is non-magnetic, electrically insulating, and has low thermal conductivity, making it well-suited to applications where metal fasteners may cause interference or conductivity concerns.

Nylon Slotted Countersunk Head Machine Screws DIN 963

AH0064-NY Nylon Slotted Countersunk Head Machine Screws DIN 963

Please select your thread size to activate the dimensional functionality

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0064-M2.005-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

5mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.006-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

6mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.008-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

8mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.010-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

10mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.012-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

12mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.016-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

16mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2

3.8mm

1.2mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.005-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

5mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.006-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

6mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.008-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

8mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.010-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

10mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.012-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

12mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.016-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

16mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M2.5.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M2.5

4.7mm

1.5mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.005-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

5mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.006-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

6mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.008-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

8mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.010-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

10mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.012-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

12mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.016-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

16mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M3.030-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M3

5.2mm +1.10

1.7mm

30mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.006-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

6mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.008-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

8mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.010-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

10mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.012-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

12mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.015-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

15mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.016-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

16mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.030-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

30mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M4.035-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M4

8.0mm +1.40

2.7mm

35mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.006-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

6mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.008-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

8mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.010-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

10mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.012-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

12mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.016-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

16mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.030-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

30mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M5.040-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M5

8.9mm +1.50

2.7mm

40mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.010-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

10mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.012-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

12mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.016-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

16mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.035-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

35mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.040-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

40mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M6.050-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M6

10.9mm +1.70

3.3mm

50mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M8.016-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M8

15.4mm +1.90

4.7mm

16mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M8.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M8

15.4mm +1.90

4.7mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M8.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M8

15.4mm +1.90

4.7mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M8.030-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M8

15.4mm +1.90

4.7mm

30mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M8.050-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M8

15.4mm +1.90

4.7mm

50mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M10.020-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M10

17.8mm +2.20

5mm

20mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M10.025-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M10

17.8mm +2.20

5mm

25mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M10.030-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M10

17.8mm +2.20

5mm

30mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

AH0064-M10.035-NY

Button

Thread Size D1:

Shoulder Diameter D2:

Head Length H1:

Thread Length L1:

Slotted W1:

Operating Temperature:

Material:

M10

17.8mm +2.20

5mm

35mm

W1

–35°C to +85°C

Nylon 66 (PA66) UL94-V2

All Products

Hardware

Fasteners

Nylon Fasteners

PRODUCTS

AH0064-NY Nylon Slotted Countersunk Head Machine Screws DIN 963

AH0064-M2.005-NY

AH0064-M2.006-NY

AH0064-M2.008-NY

AH0064-M2.010-NY

AH0064-M2.012-NY

AH0064-M2.016-NY

AH0064-M2.020-NY

AH0064-M2.025-NY

AH0064-M2.5.005-NY

AH0064-M2.5.006-NY

AH0064-M2.5.008-NY

AH0064-M2.5.010-NY

AH0064-M2.5.012-NY

AH0064-M2.5.016-NY

AH0064-M2.5.020-NY

AH0064-M2.5.025-NY

AH0064-M3.005-NY

AH0064-M3.006-NY

AH0064-M3.008-NY

AH0064-M3.010-NY

AH0064-M3.012-NY

AH0064-M3.016-NY

AH0064-M3.020-NY

AH0064-M3.025-NY

AH0064-M3.030-NY

AH0064-M4.006-NY

AH0064-M4.008-NY

AH0064-M4.010-NY

AH0064-M4.012-NY

AH0064-M4.015-NY

AH0064-M4.016-NY

AH0064-M4.020-NY

AH0064-M4.025-NY

AH0064-M4.030-NY

AH0064-M4.035-NY

AH0064-M5.006-NY

AH0064-M5.008-NY

AH0064-M5.010-NY

AH0064-M5.012-NY

AH0064-M5.016-NY

AH0064-M5.020-NY

AH0064-M5.025-NY

AH0064-M5.030-NY

AH0064-M5.040-NY

AH0064-M6.010-NY

AH0064-M6.012-NY

AH0064-M6.016-NY

AH0064-M6.020-NY

AH0064-M6.025-NY

AH0064-M6.035-NY

AH0064-M6.040-NY

AH0064-M6.050-NY

AH0064-M8.016-NY

AH0064-M8.020-NY

AH0064-M8.025-NY

AH0064-M8.030-NY

AH0064-M8.050-NY

AH0064-M10.020-NY

AH0064-M10.025-NY

AH0064-M10.030-NY

AH0064-M10.035-NY
