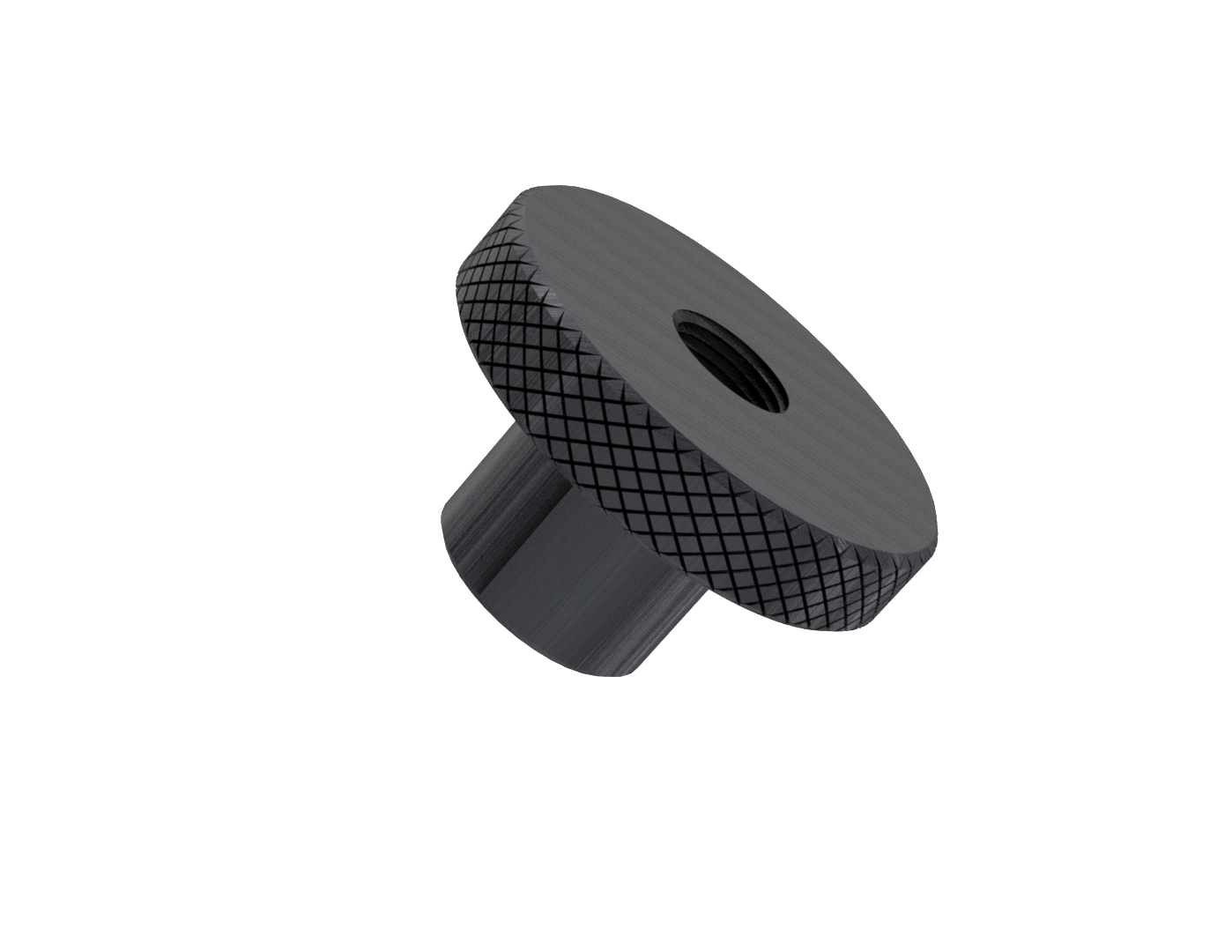

AH0029-ST Thin Knurled Thumb Nuts, High Type

Thumb nuts are a type of fastener designed to be easily tightened and loosened by hand without the need for tools. They have a knurled or textured exterior that provides a better grip, allowing for quick adjustments and secure fastening. Thumb nuts are often used in applications where frequent adjustment or removal is necessary, such as in electronic devices, machinery, and equipment that require periodic maintenance. Their user-friendly design makes them suitable for use in situations where convenience and efficiency are important.

AH0029-ST Thin Knurled Thumb Nuts, High Type
AH0029-ST Thin Knurled Thumb Nuts, High Type

Please select your thread size to activate the dimensional functionality

AH0029-M4.095-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1: :

Material:

8mm

16mm

9.5mm

3.5mm

M4

Steel

AH0029-M5.115-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1: :

Material:

10mm

19mm

11.5mm

4mm

M5

Steel

AH0029-M6.015-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1: :

Material:

12mm

25mm

15mm

5mm

M6

Steel

AH0029-M8.018-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1: :

Material:

16mm

28mm

18mm

6mm

M8

Steel

AH0029-M10.023-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1: :

Material:

20mm

32mm

23mm

8mm

M10

Steel

AH0029-M12.025-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1: :

Material:

22mm

40mm

25mm

10mm

M12

Steel
