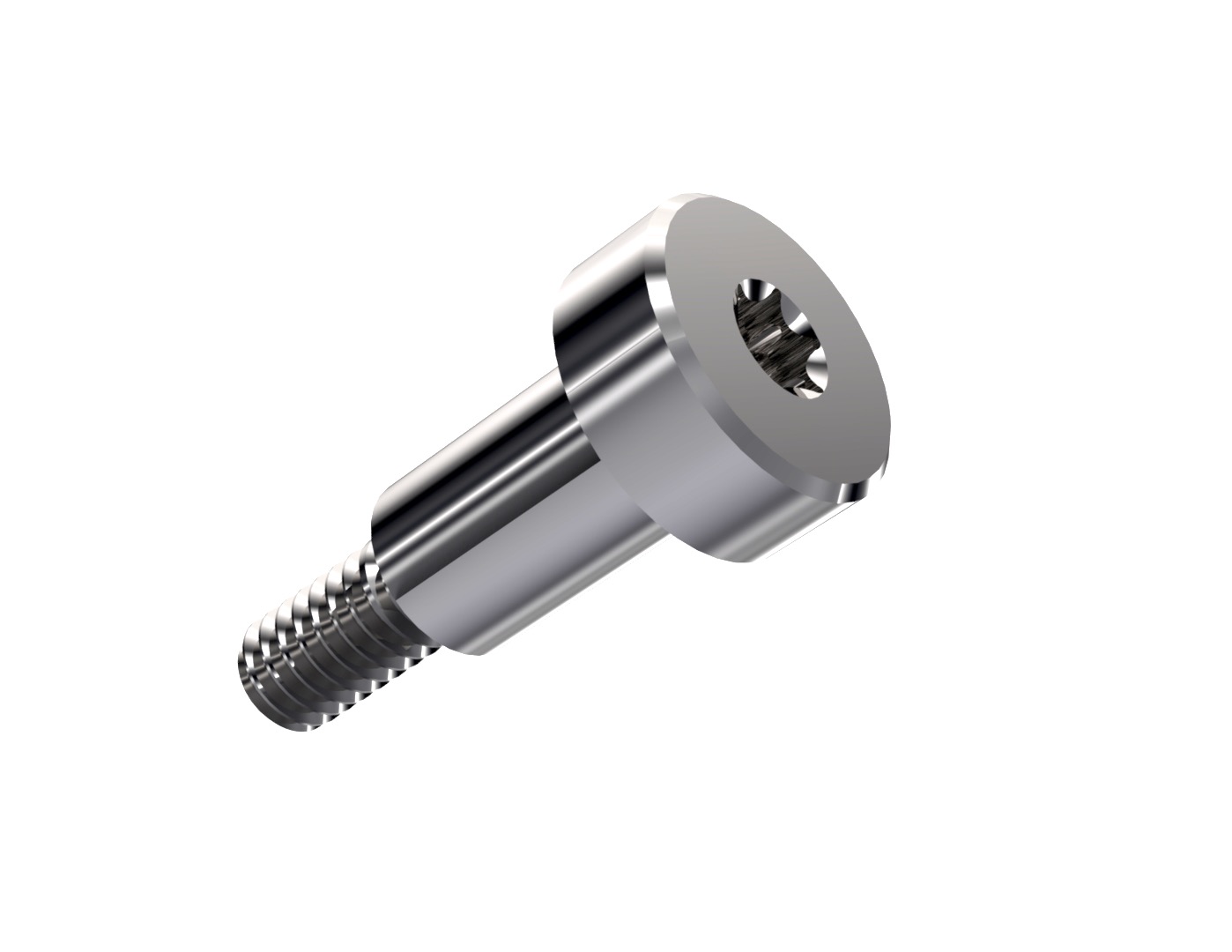

AH0011-A4 Shoulder Screw Torx Drive Cap Head
Stainless Steel 316

A shoulder screw, also known as a shoulder bolt or stripper bolt, is a type of fastener with an unthreaded cylindrical shoulder between the head and the threaded portion. This design allows for precise spacing and bearing surfaces in mechanical assemblies, providing stability and support. Shoulder screws are commonly used in applications where precise alignment or rotational accuracy is crucial.

Please select your thread size to activate the dimensional functionality

AH0011-M3.004-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M3

4mm

7mm

3mm

7mm

4mm

TX

Stainless Steel 316

AH0011-M3.006-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M3

4mm

7mm

3mm

7mm

6mm

TX

Stainless Steel 316

AH0011-M3.008-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M3

4mm

7mm

3mm

7mm

8mm

TX

Stainless Steel 316

AH0011-M4.006-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M4

5mm

9mm

4mm

8mm

6mm

TX

Stainless Steel 316

AH0011-M4.008-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M4

5mm

9mm

4mm

8mm

TX

Stainless Steel 316

AH0011-M4.010-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M4

5mm

9mm

4mm

8mm

10mm

TX

Stainless Steel 316

AH0011-M5.010-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M5

6mm

10mm

4.5mm

9.75mm

10mm

TX

Stainless Steel 316

AH0011-M5.012-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M5

6mm

10mm

4.5mm

9.75mm

12mm

TX

Stainless Steel 316

AH0011-M5.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M5

6mm

10mm

4.5mm

9.75mm

16mm

TX

Stainless Steel 316

AH0011-M5.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M5

6mm

10mm

4.5mm

9.75mm

20mm

TX

Stainless Steel 316

AH0011-M5.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M5

6mm

10mm

4.5mm

9.75mm

25mm

TX

Stainless Steel 316

AH0011-M5.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M5

6mm

10mm

4.5mm

9.75mm

30mm

TX

Stainless Steel 316

AH0011-M6.012-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M6

8mm

13mm

5.5mm

11.25mm

12mm

TX

Stainless Steel 316

AH0011-M6.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M6

8mm

13mm

5.5mm

11.25mm

16mm

TX

Stainless Steel 316

AH0011-M6.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M6

8mm

13mm

5.5mm

11.25mm

20mm

TX

Stainless Steel 316

AH0011-M6.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M6

8mm

13mm

5.5mm

11.25mm

25mm

TX

Stainless Steel 316

AH0011-M6.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M6

8mm

13mm

5.5mm

11.25mm

30mm

TX

Stainless Steel 316

AH0011-M6.040-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M6

8mm

13mm

5.5mm

11.25mm

40mm

TX

Stainless Steel 316

AH0011-M6.050-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M6

8mm

13mm

5.5mm

11.25mm

50mm

TX

Stainless Steel 316

AH0011-M8.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M8

10mm

16mm

7mm

13.25mm

16mm

TX

Stainless Steel 316

AH0011-M8.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M8

10mm

16mm

7mm

13.25mm

20mm

TX

Stainless Steel 316

AH0011-M8.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M8

10mm

16mm

7mm

13.25mm

25mm

TX

Stainless Steel 316

AH0011-M8.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M8

10mm

16mm

7mm

13.25mm

30mm

TX

Stainless Steel 316

AH0011-M8.040-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M8

10mm

16mm

7mm

13.25mm

40mm

TX

Stainless Steel 316

AH0011-M10.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M10

12mm

18mm

8mm

16.4mm

16mm

TX

Stainless Steel 316

AH0011-M10.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M10

12mm

18mm

8mm

16.4mm

20mm

TX

Stainless Steel 316

AH0011-M10.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M10

12mm

18mm

8mm

16.4mm

25mm

TX

Stainless Steel 316

AH0011-M10.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M10

12mm

18mm

8mm

16.4mm

30mm

TX

Stainless Steel 316

AH0011-M10.040-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M10

12mm

18mm

8mm

16.4mm

40mm

TX

Stainless Steel 316

AH0011-M10.050-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Hexagon Across Flats TX:

Material:

M10

12mm

18mm

8mm

16.4mm

50mm

TX

Stainless Steel 316
