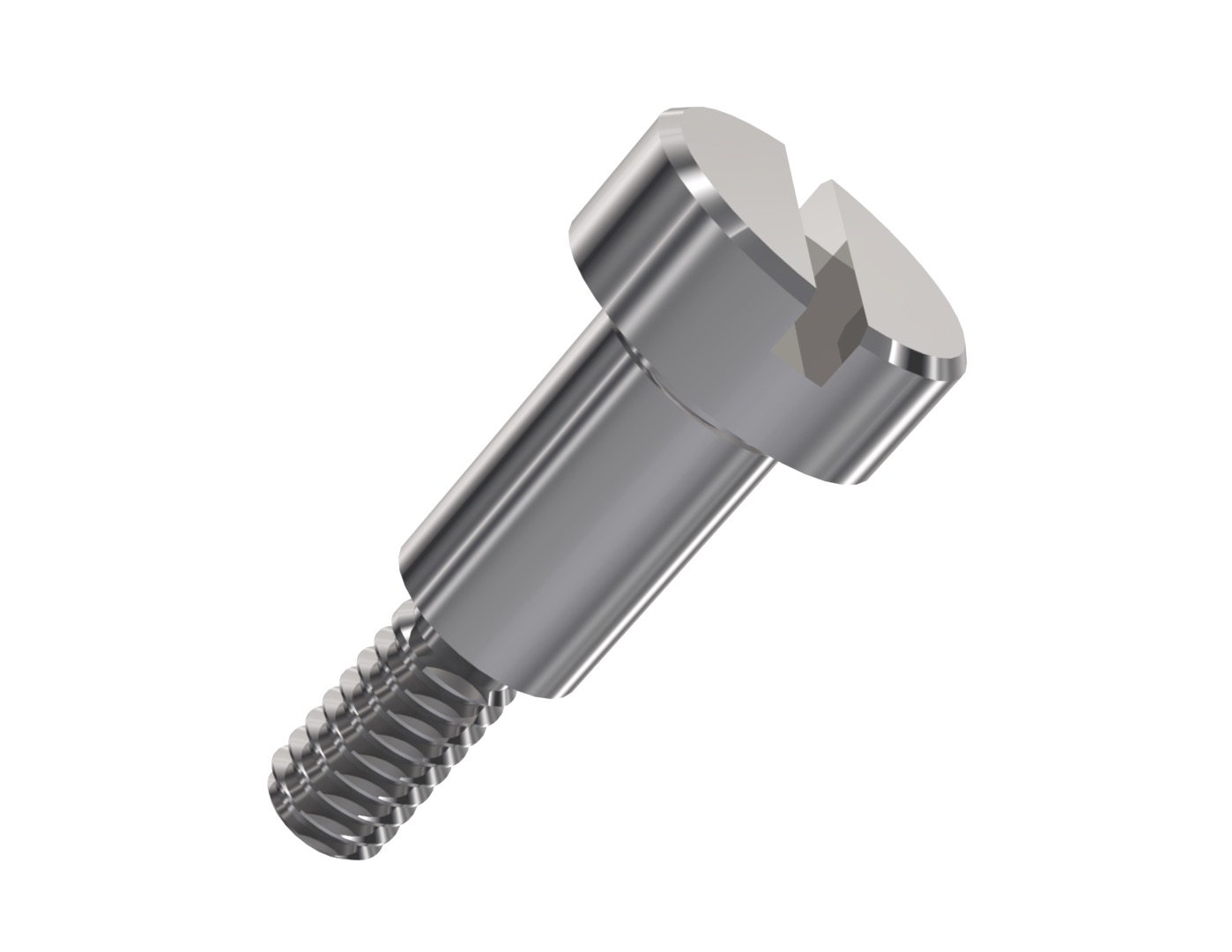

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

A shoulder screw, also known as a shoulder bolt or stripper bolt, is a type of fastener with an unthreaded cylindrical shoulder between the head and the threaded portion. This design allows for precise spacing and bearing surfaces in mechanical assemblies, providing stability and support. Shoulder screws are commonly used in applications where precise alignment or rotational accuracy is crucial.

Please select your thread size to activate the dimensional functionality

AH0017-M3.004-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M3

4mm

7mm

3mm

7mm

4mm

0.8mm

Stainless Steel 316

AH0017-M3.006-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M3

4mm

7mm

3mm

7mm

6mm

0.8mm

Stainless Steel 316

AH0017-M3.008-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M3

4mm

7mm

3mm

7mm

8mm

0.8mm

Stainless Steel 316

AH0017-M4.006-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M4

5mm

9mm

4mm

8mm

6mm

2.5mm

Stainless Steel 316

AH0017-M4.008-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M4

5mm

9mm

4mm

8mm

2.5mm

Stainless Steel 316

AH0017-M4.010-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M4

5mm

9mm

4mm

8mm

10mm

2.5mm

Stainless Steel 316

AH0017-M5.010-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M5

6mm

10mm

4.5mm

9.75mm

10mm

1.2mm

Stainless Steel 316

AH0017-M5.012-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M5

6mm

10mm

4.5mm

9.75mm

12mm

1.2mm

Stainless Steel 316

AH0017-M5.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M5

6mm

10mm

4.5mm

9.75mm

16mm

1.2mm

Stainless Steel 316

AH0017-M5.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M5

6mm

10mm

4.5mm

9.75mm

20mm

1.2mm

Stainless Steel 316

AH0017-M5.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M5

6mm

10mm

4.5mm

9.75mm

25mm

1.2mm

Stainless Steel 316

AH0017-M5.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M5

6mm

10mm

4.5mm

9.75mm

30mm

1.2mm

Stainless Steel 316

AH0017-M6.012-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M6

8mm

13mm

5.5mm

11.25mm

12mm

1.6mm

Stainless Steel 316

AH0017-M6.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M6

8mm

13mm

5.5mm

11.25mm

16mm

1.6mm

Stainless Steel 316

AH0017-M6.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M6

8mm

13mm

5.5mm

11.25mm

20mm

1.6mm

Stainless Steel 316

AH0017-M6.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M6

8mm

13mm

5.5mm

11.25mm

25mm

1.6mm

Stainless Steel 316

AH0017-M6.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M6

8mm

13mm

5.5mm

11.25mm

30mm

1.6mm

Stainless Steel 316

AH0017-M6.040-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M6

8mm

13mm

5.5mm

11.25mm

40mm

1.6mm

Stainless Steel 316

AH0017-M6.050-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M6

8mm

13mm

5.5mm

11.25mm

50mm

1.6mm

Stainless Steel 316

AH0017-M8.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M8

10mm

16mm

7mm

13.25mm

16mm

2mm

Stainless Steel 316

AH0017-M8.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M8

10mm

16mm

7mm

13.25mm

20mm

2mm

Stainless Steel 316

AH0017-M8.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M8

10mm

16mm

7mm

13.25mm

25mm

2mm

Stainless Steel 316

AH0017-M8.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M8

10mm

16mm

7mm

13.25mm

30mm

2mm

Stainless Steel 316

AH0017-M8.040-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M8

10mm

16mm

7mm

13.25mm

40mm

2mm

Stainless Steel 316

AH0017-M10.016-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M10

12mm

18mm

8mm

16.4mm

16mm

2.5mm

Stainless Steel 316

AH0017-M10.020-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M10

12mm

18mm

8mm

16.4mm

20mm

2.5mm

Stainless Steel 316

AH0017-M10.025-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M10

12mm

18mm

8mm

16.4mm

25mm

2.5mm

Stainless Steel 316

AH0017-M10.030-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M10

12mm

18mm

8mm

16.4mm

30mm

2.5mm

Stainless Steel 316

AH0017-M10.040-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M10

12mm

18mm

8mm

16.4mm

40mm

2.5mm

Stainless Steel 316

AH0017-M10.050-A4

Button

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Head Length H1:

Thread Length L1:

Shoulder Length L2:

Slotted W1:

Material:

M10

12mm

18mm

8mm

16.4mm

50mm

2.5mm

Stainless Steel 316
