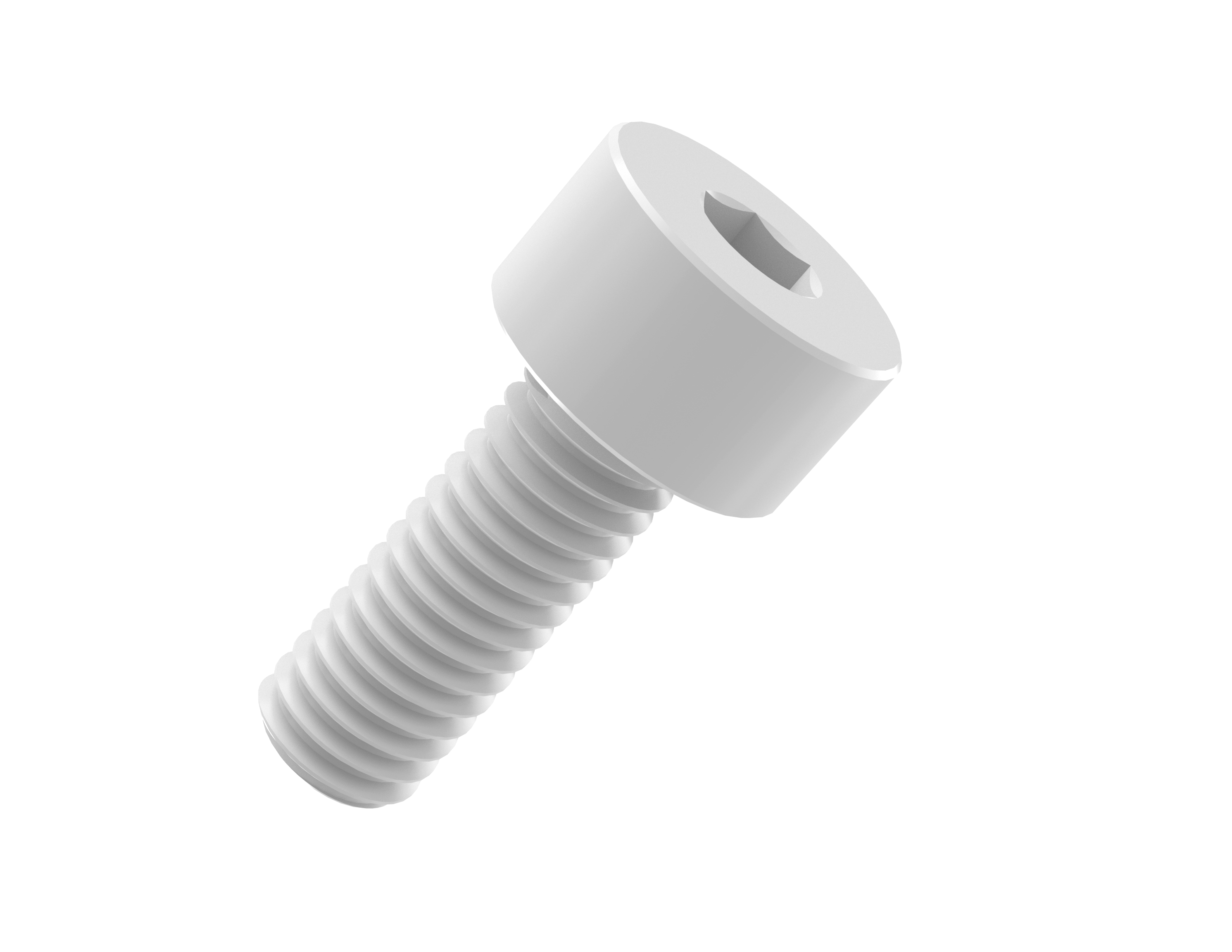

AH0066-NY Nylon Hexagon Socket Cap Head Screws
ISO 4762 / DIN 912

Nylon hexagon socket cap head screws to ISO 4762 / DIN 912 have a cylindrical head with an internal hex drive for secure, high-torque fastening in compact assemblies. Made from engineering-grade Nylon PA. Nylon hexagon socket cap head combines strength with lightweight performance, offering excellent resistance to corrosion and chemicals, as well as low electrical conductivity.

AH0066-NY Nylon Hexagon Socket Cap Head DIN 912

Please select your thread size to activate the dimensional functionality

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0066-M3.005-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

5mm

–35°C to +85°C

Nylon PA

AH0066-M3.006-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

6mm

–35°C to +85°C

Nylon PA

AH0066-M3.008-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

8mm

–35°C to +85°C

Nylon PA

AH0066-M3.010-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

10mm

–35°C to +85°C

Nylon PA

AH0066-M3.012-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

12mm

–35°C to +85°C

Nylon PA

AH0066-M3.016-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

16mm

–35°C to +85°C

Nylon PA

AH0066-M3.020-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

20mm

–35°C to +85°C

Nylon PA

AH0066-M3.025-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

25mm

–35°C to +85°C

Nylon PA

AH0066-M3.030-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

30mm

–35°C to +85°C

Nylon PA

AH0066-M3.035-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

35mm

–35°C to +85°C

Nylon PA

AH0066-M3.040-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

3mm

2.5mm

40mm

–35°C to +85°C

Nylon PA

AH0066-M4.006-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

6mm

–35°C to +85°C

Nylon PA

AH0066-M4.008-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

8mm

–35°C to +85°C

Nylon PA

AH0066-M4.010-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

10mm

–35°C to +85°C

Nylon PA

AH0066-M4.012-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

12mm

–35°C to +85°C

Nylon PA

AH0066-M4.016-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

16mm

–35°C to +85°C

Nylon PA

AH0066-M4.020-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

20mm

–35°C to +85°C

Nylon PA

AH0066-M4.025-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

25mm

–35°C to +85°C

Nylon PA

AH0066-M4.030-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

4mm

3mm

30mm

–35°C to +85°C

Nylon PA

AH0066-M5.006-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

6mm

–35°C to +85°C

Nylon PA

AH0066-M5.008-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

8mm

–35°C to +85°C

Nylon PA

AH0066-M5.010-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

10mm

–35°C to +85°C

Nylon PA

AH0066-M5.012-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

12mm

–35°C to +85°C

Nylon PA

AH0066-M5.015-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

15mm

–35°C to +85°C

Nylon PA

AH0066-M5.016-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

16mm

–35°C to +85°C

Nylon PA

AH0066-M5.017-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

17mm

–35°C to +85°C

Nylon PA

AH0066-M5.020-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

20mm

–35°C to +85°C

Nylon PA

AH0066-M5.025-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

25mm

–35°C to +85°C

Nylon PA

AH0066-M5.030-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

30mm

–35°C to +85°C

Nylon PA

AH0066-M5.035-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

35mm

–35°C to +85°C

Nylon PA

AH0066-M5.040-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

40mm

–35°C to +85°C

Nylon PA

AH0066-M5.045-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

45mm

–35°C to +85°C

Nylon PA

AH0066-M5.050-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

50mm

–35°C to +85°C

Nylon PA

AH0066-M5.055-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

55mm

–35°C to +85°C

Nylon PA

AH0066-M5.060-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

60mm

–35°C to +85°C

Nylon PA

AH0066-M5.065-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

65mm

–35°C to +85°C

Nylon PA

AH0066-M5.070-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M5

8.5mm

5mm

4mm

70mm

–35°C to +85°C

Nylon PA

AH0066-M6.006-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

6mm

–35°C to +85°C

Nylon PA

AH0066-M6.008-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

8mm

–35°C to +85°C

Nylon PA

AH0066-M6.010-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

10mm

–35°C to +85°C

Nylon PA

AH0066-M6.012-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

12mm

–35°C to +85°C

Nylon PA

AH0066-M6.015-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

15mm

–35°C to +85°C

Nylon PA

AH0066-M6.016-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

16mm

–35°C to +85°C

Nylon PA

AH0066-M6.017-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

17mm

–35°C to +85°C

Nylon PA

AH0066-M6.020-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

20mm

–35°C to +85°C

Nylon PA

AH0066-M6.025-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

25mm

–35°C to +85°C

Nylon PA

AH0066-M6.030-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

30mm

–35°C to +85°C

Nylon PA

AH0066-M6.035-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

35mm

–35°C to +85°C

Nylon PA

AH0066-M6.040-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

40mm

–35°C to +85°C

Nylon PA

AH0066-M6.045-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

45mm

–35°C to +85°C

Nylon PA

AH0066-M6.050-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

50mm

–35°C to +85°C

Nylon PA

AH0066-M6.055-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

55mm

–35°C to +85°C

Nylon PA

AH0066-M6.060-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

60mm

–35°C to +85°C

Nylon PA

AH0066-M6.065-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

65mm

–35°C to +85°C

Nylon PA

AH0066-M6.070-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

70mm

–35°C to +85°C

Nylon PA

AH0066-M6.080-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

6mm

5mm

80mm

–35°C to +85°C

Nylon PA

AH0066-M8.006-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

–35°C to +85°C

Nylon PA

AH0066-M8.008-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

8mm

–35°C to +85°C

Nylon PA

AH0066-M8.010-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

10mm

–35°C to +85°C

Nylon PA

AH0066-M8.012-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

12mm

–35°C to +85°C

Nylon PA

AH0066-M8.015-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

15mm

–35°C to +85°C

Nylon PA

AH0066-M8.016-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

16mm

–35°C to +85°C

Nylon PA

AH0066-M8.017-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

17mm

–35°C to +85°C

Nylon PA

AH0066-M8.020-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

20mm

–35°C to +85°C

Nylon PA

AH0066-M8.025-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

25mm

–35°C to +85°C

Nylon PA

AH0066-M8.030-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

30mm

–35°C to +85°C

Nylon PA

AH0066-M8.035-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

35mm

–35°C to +85°C

Nylon PA

AH0066-M8.040-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

40mm

–35°C to +85°C

Nylon PA

AH0066-M8.045-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

45mm

–35°C to +85°C

Nylon PA

AH0066-M8.050-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

50mm

–35°C to +85°C

Nylon PA

AH0066-M8.055-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

55mm

–35°C to +85°C

Nylon PA

AH0066-M8.060-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

60mm

–35°C to +85°C

Nylon PA

AH0066-M8.065-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

65mm

–35°C to +85°C

Nylon PA

AH0066-M8.070-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

70mm

–35°C to +85°C

Nylon PA

AH0066-M8.075-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

75mm

–35°C to +85°C

Nylon PA

AH0066-M8.075-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

75mm

–35°C to +85°C

Nylon PA

AH0066-M8.080-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

80mm

–35°C to +85°C

Nylon PA

AH0066-M8.085-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

85mm

–35°C to +85°C

Nylon PA

AH0066-M8.085-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

85mm

–35°C to +85°C

Nylon PA

AH0066-M8.090-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

90mm

–35°C to +85°C

Nylon PA

AH0066-M8.095-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

95mm

–35°C to +85°C

Nylon PA

AH0066-M8.100-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

100mm

–35°C to +85°C

Nylon PA

AH0066-M8.110-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

110mm

–35°C to +85°C

Nylon PA

AH0066-M8.120-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

120mm

–35°C to +85°C

Nylon PA

AH0066-M8.130-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

8mm

6mm

130mm

–35°C to +85°C

Nylon PA

AH0066-M10.006-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

6mm

–35°C to +85°C

Nylon PA

AH0066-M10.008-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

–35°C to +85°C

Nylon PA

AH0066-M10.010-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

10mm

–35°C to +85°C

Nylon PA

AH0066-M10.012-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

12mm

–35°C to +85°C

Nylon PA

AH0066-M10.015-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

15mm

–35°C to +85°C

Nylon PA

AH0066-M10.016-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

16mm

–35°C to +85°C

Nylon PA

AH0066-M10.017-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

17mm

–35°C to +85°C

Nylon PA

AH0066-M10.020-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

20mm

–35°C to +85°C

Nylon PA

AH0066-M10.025-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

25mm

–35°C to +85°C

Nylon PA

AH0066-M10.030-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

30mm

–35°C to +85°C

Nylon PA

AH0066-M10.035-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

35mm

–35°C to +85°C

Nylon PA

AH0066-M10.040-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

40mm

–35°C to +85°C

Nylon PA

AH0066-M10.045-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

45mm

–35°C to +85°C

Nylon PA

AH0066-M10.050-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

50mm

–35°C to +85°C

Nylon PA

AH0066-M10.055-NY

Button

Thread Size D1:

Head Diameter D2:

Head Length H1:

Hexagon Across Flats A/F:

Thread Length L1:

Operating Temperature:

Material:

M10

16mm

10mm

8mm

55mm

–35°C to +85°C

Nylon PA

PRODUCTS

All Products

Hardware

Fasteners

Plastic and Nylon Fasteners

AH0066-NY Nylon Hexagon Socket Cap Head Screws ISO 4762 / DIN 912

AH0066-M3.005-NY

AH0066-M3.006-NY

AH0066-M3.008-NY

AH0066-M3.010-NY

AH0066-M3.012-NY

AH0066-M3.016-NY

AH0066-M3.020-NY

AH0066-M3.025-NY

AH0066-M3.030-NY

AH0066-M3.035-NY

AH0066-M3.040-NY

AH0066-M4.006-NY

AH0066-M4.008-NY

AH0066-M4.010-NY

AH0066-M4.012-NY

AH0066-M4.016-NY

AH0066-M4.020-NY

AH0066-M4.025-NY

AH0066-M4.030-NY

AH0066-M5.006-NY

AH0066-M5.008-NY

AH0066-M5.010-NY

AH0066-M5.012-NY

AH0066-M5.015-NY

AH0066-M5.016-NY

AH0066-M5.017-NY

AH0066-M5.020-NY

AH0066-M5.025-NY

AH0066-M5.030-NY

AH0066-M5.035-NY

AH0066-M5.040-NY

AH0066-M5.045-NY

AH0066-M5.050-NY

AH0066-M5.055-NY

AH0066-M5.060-NY

AH0066-M5.065-NY

AH0066-M5.070-NY

AH0066-M6.006-NY

AH0066-M6.008-NY

AH0066-M6.010-NY

AH0066-M6.012-NY

AH0066-M6.015-NY

AH0066-M6.016-NY

AH0066-M6.017-NY

AH0066-M6.020-NY

AH0066-M6.025-NY

AH0066-M6.030-NY

AH0066-M6.035-NY

AH0066-M6.040-NY

AH0066-M6.045-NY

AH0066-M6.050-NY

AH0066-M6.055-NY

AH0066-M6.060-NY

AH0066-M6.065-NY

AH0066-M6.070-NY

AH0066-M6.080-NY

AH0066-M8.006-NY

AH0066-M8.008-NY

AH0066-M8.010-NY

AH0066-M8.012-NY

AH0066-M8.015-NY

AH0066-M8.016-NY

AH0066-M8.017-NY

AH0066-M8.020-NY

AH0066-M8.025-NY

AH0066-M8.030-NY

AH0066-M8.035-NY

AH0066-M8.040-NY

AH0066-M8.045-NY

AH0066-M8.050-NY

AH0066-M8.055-NY

AH0066-M8.060-NY

AH0066-M8.065-NY

AH0066-M8.070-NY

AH0066-NY Nylon Hexagon Socket Cap Head Screws
ISO 4762 / DIN 912
