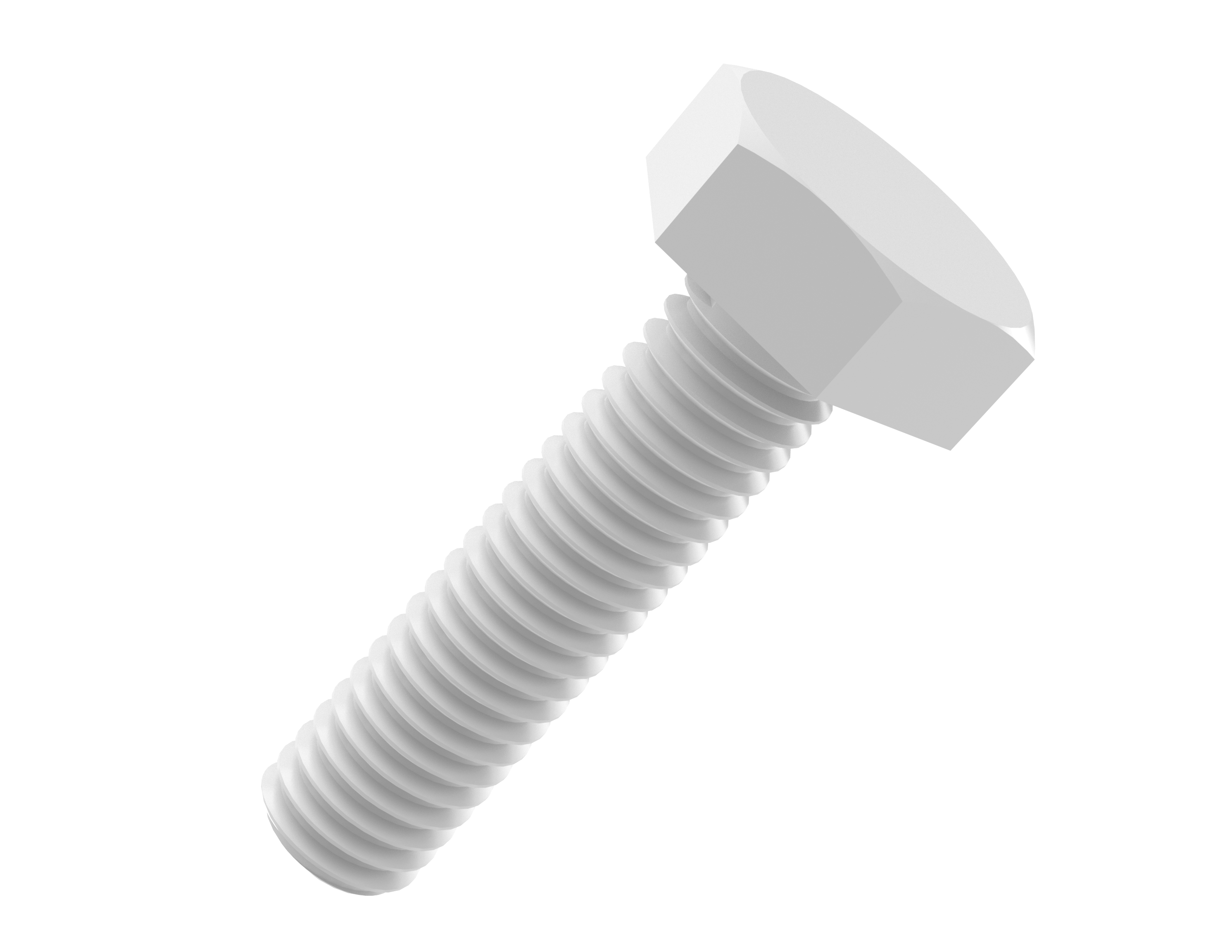

AH0063-NY Nylon Hex Head Bolt Machine Screws
Metric DIN 933

Nylon hex-head machine screws are precision-machined from high-performance Nylon 66 (PA66), providing excellent resistance to corrosion and chemicals, as well as low electrical conductivity. Produced in accordance with DIN 34810 (formerly DIN 933, aligned with ISO standards), these non-magnetic plastic fasteners are ideal for applications where metal components are unsuitable. Designed for use with a hex socket or spanner, they ensure secure and dependable installation.

Nylon Hex Head Bolt Machine Screws
Metric DIN 933

Nylon Hex Head Bolt Machine Screws
Metric DIN 933

Please select your thread size to activate the dimensional functionality

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.004-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

4mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.005-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.006-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.008-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.010-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.012-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2

3mm

1.4mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.004-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

4mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.005-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

4.5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.005-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.006-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.008-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.010-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.012-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M2.5.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M2.5

4mm

2mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.004-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

4mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.005-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.006-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.008-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.010-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.012-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.015-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

15mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.030-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M3.035-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M3

5.5mm

2mm

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.005-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.006-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.008-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.010-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.012-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.015-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

15mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.030-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.035-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M4.040-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M4

7mm

2.8mm

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.006-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.008-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.010-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.012-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.015-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

15mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.030-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.035-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.040-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.050-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

50mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M5.070-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M5

8mm

3.5mm

70mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.005-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

5mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.006-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.008-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.010-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.012-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.015-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

15mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.030-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.035-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.040-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.045-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

45mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.050-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

50mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.060-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

60mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M6.070-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M6

10mm

4mm

70mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.006-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

6mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.008-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

8mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.010-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

10mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.012-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

12mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.015-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

15mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.030-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.035-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.040-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.050-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

50mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.060-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

60mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.070-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

70mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M8.080-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M8

13mm

5.3mm

80mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.015-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

15mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.016-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

16mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.030-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.035-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.040-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.050-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

50mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M10.060-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M10

17mm

6.4mm

60mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M12.020-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M12

18mm

7.5mm

20mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M12.025-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M12

18mm

7.5mm

25mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M12.030-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M12

18mm

7.5mm

30mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M12.035-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M12

18mm

7.5mm

35mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M12.040-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M12

18mm

7.5mm

40mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M12.050-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M12

18mm

7.5mm

50mm

-35 to +85°C

Nylon 66 UL94-V2

AH0017-A4 Shoulder Screw Slotted Cap Head
Stainless Steel 316

AH0063-M12.060-NY

Thread Size D1:

Socket Size A/F :

Head Length H1:

Thread Length L1:

Operating Temperature:

Material:

M12

18mm

7.5mm

60mm

-35 to +85°C

Nylon 66 UL94-V2

bottom of page
