AH0030-BS Metric Hexagon Nut - DIN 934
Brass

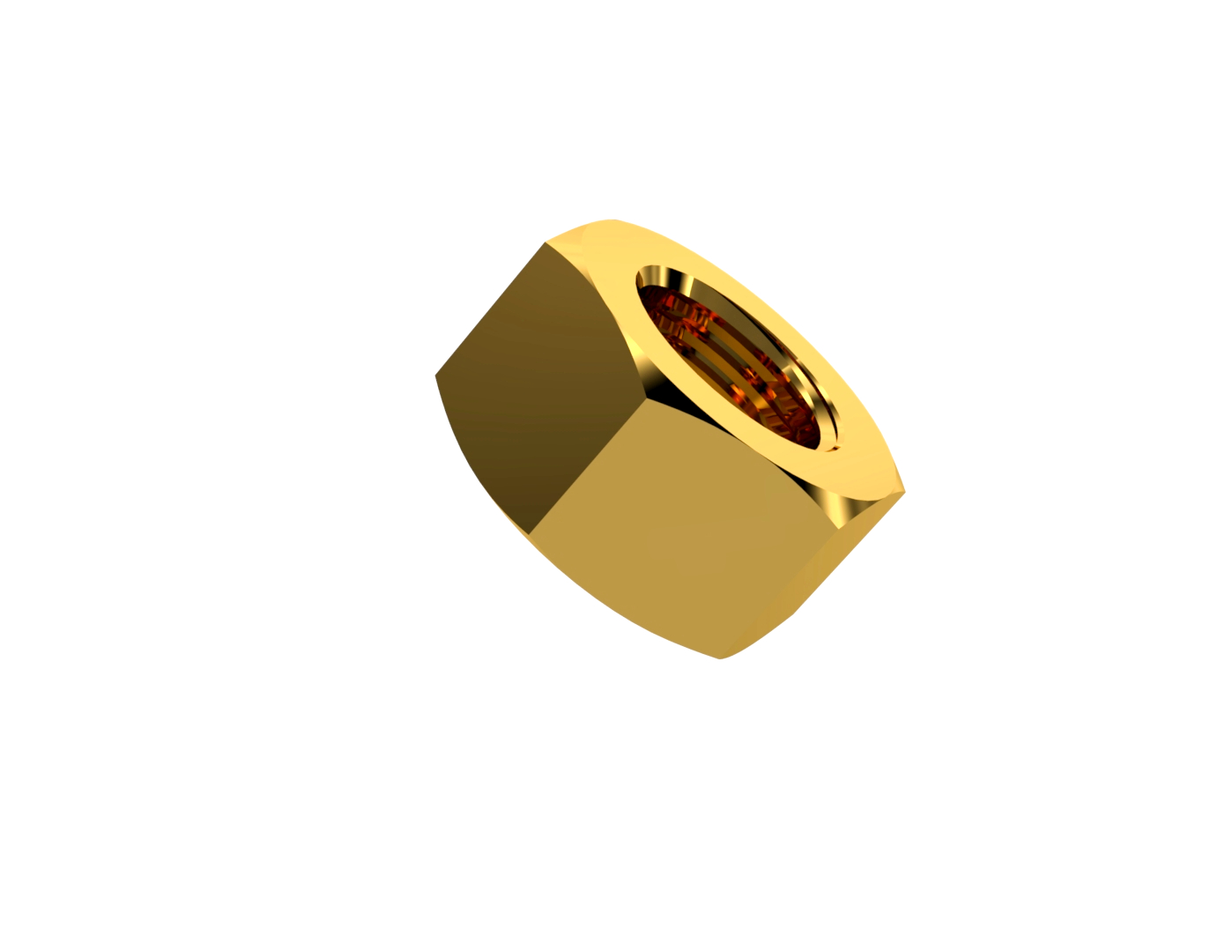

Our Metric Hexagon Nuts are precision-engineered to conform to the DIN 934 standard, ensuring outstanding reliability and strength for various fastening applications. These full nuts feature standard metric coarse threading, making them suitable for use across numerous sectors, including automotive, industrial, and general engineering.

These nuts are made from high-quality brass. We also provide fine-pitch and left-hand thread options to meet the specific requirements of specialised applications.

AH0030-BS Metric Hexagon Nut - DIN 934 Brass

Please select your thread size to activate the dimensional functionality

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M2.004-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M2

4mm

1.6mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M2.5.005-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M2.5

5mm

2mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M3.055-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M3

5.5mm

2.4mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M3.5.006-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M3.5

6mm

2.8mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M4.007-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M4

7mm

3.2mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M5.008-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M5

8mm

4mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M6.010-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M6

10mm

5mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M8.013-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M8

13mm

6.5mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M10.017-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M10

17mm

8mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M12.019-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M12

19mm

10mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M14.022-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M14

22mm

11mm

Brass

Natural

DIN 934 - ISO 4032

AH0010-A4 Shoulder Screw Hexagon Socket Cap Head stainless steel 316

AH0030-M16.024-BS

Button

Thread Size D:

​

Socket Size S:

​

Nut Thickness L:

​

Material:

​

Finish:

​

Manufacturing Standard:

M16

24mm

13mm

Brass

Natural

DIN 934 - ISO 4032
