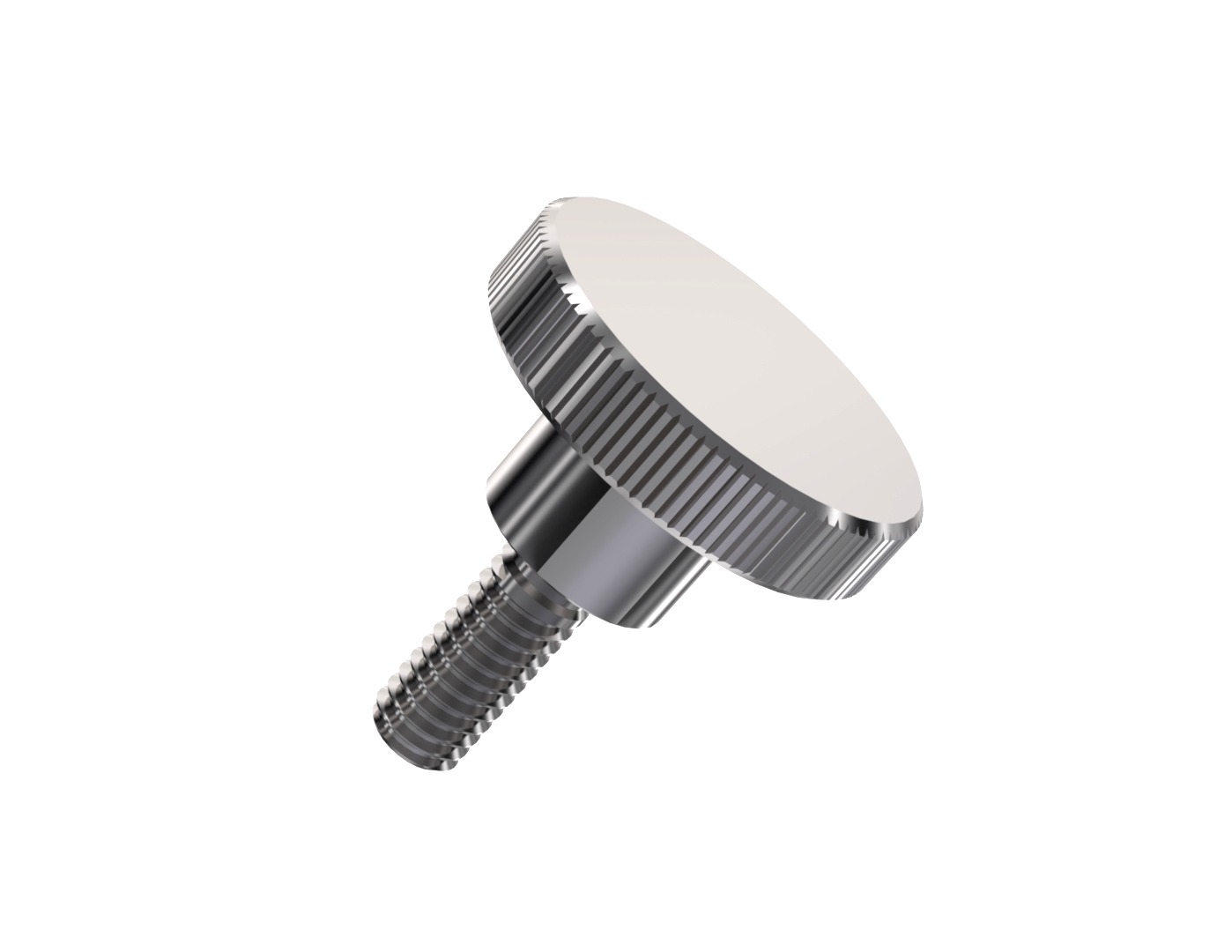

AH0026-A2 Knurled Thumb Screws
Stainless Steel 303

Thumb screws are designed with a head that can be easily tightened or loosened by hand, typically without the need for tools. They often have a ridged or knurled surface to provide grip for twisting by hand, making them convenient for applications where frequent adjustments or quick fastening is necessary.

AH0026-A2 Knurled Thumb Screws  Stainless Steel 303
AH0026-A2 Knurled Thumb Screws  Stainless Steel 303

Please select your thread size to activate the dimensional functionality

AH0026-M4.010-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M4

8mm

16mm

3.5mm

10mm

Stainless Steel 303

9.5mm

AH0026-M4.015-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M4

8mm

16mm

3.5mm

15mm

Stainless Steel 303

9.5mm

AH0026-M4.020-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M4

8mm

16mm

3.5mm

20mm

Stainless Steel 303

9.5mm

AH0026-M5.010-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M5

10mm

20mm

4mm

10mm

Stainless Steel 303

11.5mm

AH0026-M5.015-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M5

10mm

20mm

4mm

15mm

Stainless Steel 303

11.5mm

AH0026-M5.020-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M5

10mm

20mm

4mm

20mm

Stainless Steel 303

11.5mm

AH0026-M6.015-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M6

12mm

25mm

5mm

15mm

Stainless Steel 303

15mm

AH0026-M6.020-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M6

12mm

25mm

5mm

20mm

Stainless Steel 303

15mm

AH0026-M6.025-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M6

12mm

25mm

5mm

25mm

Stainless Steel 303

15mm

AH0026-M8.015-A2

Button

Thread Size D1:

​

Shoulder Diameter D2:

​

Head Diameter D3:

​

Head Length H1:

​

Thread Length L1:

​

Length L2:

​

Material:

M8

16mm

30mm

6mm

15mm

Stainless Steel 303

18mm
