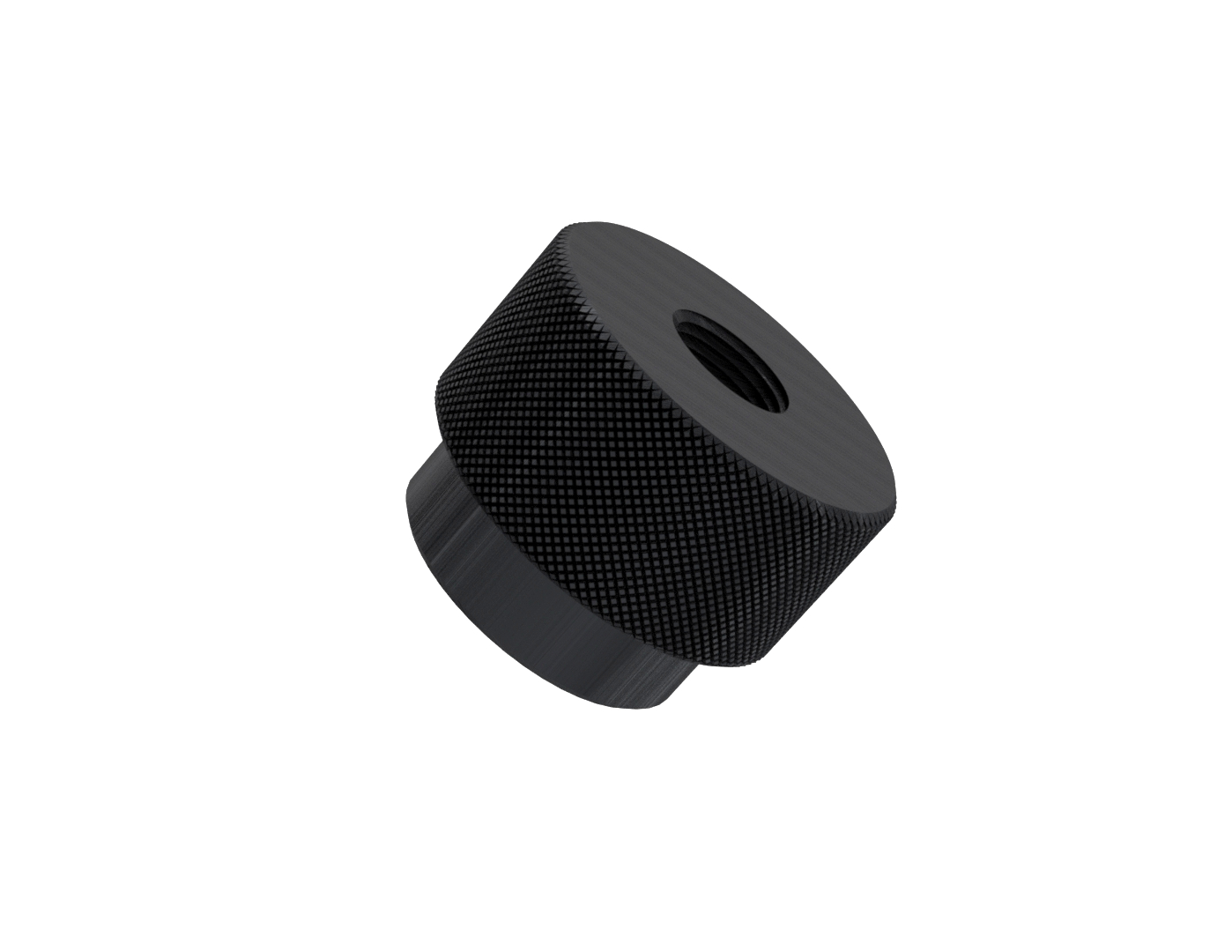

AH0028-ST Knurled Thumb Nut Steel Blackened

Thumb nuts are a type of fastener designed to be easily tightened and loosened by hand without the need for tools. They have a knurled or textured exterior that provides a better grip, allowing for quick adjustments and secure fastening. Thumb nuts are often used in applications where frequent adjustment or removal is necessary, such as in electronic devices, machinery, and equipment that require periodic maintenance. Their user-friendly design makes them suitable for use in situations where convenience and efficiency are important.

AH0028-ST Knurled Thumb Nut Steel Blackened
AH0028-ST Knurled Thumb Nut Steel Blackened

Please select your thread size to activate the dimensional functionality

AH0028-M4.012-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1:

Material:

12mm

16mm

12mm

9mm

Steel

M4

AH0028-M5.012-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1:

Material:

12mm

16mm

12mm

9mm

Steel

M5

AH0028-M6.015-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1:

Material:

16mm

20mm

15mm

10mm

Steel

M6

AH0028-M8.016-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1:

Material:

19mm

25mm

16mm

11mm

Steel

M8

AH0028-M10.019-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1:

Material:

24mm

32mm

19mm

13mm

Steel

M10

AH0028-M12.022-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1:

Material:

28.5mm

38mm

22mm

14mm

Steel

M12

AH0028-M16.022-ST

Thread Size D1:

Shoulder Diameter D2:

Head Diameter D3:

Overall Length L:

Head Length L1:

Material:

30mm

40mm

22mm

14mm

Steel

M16
