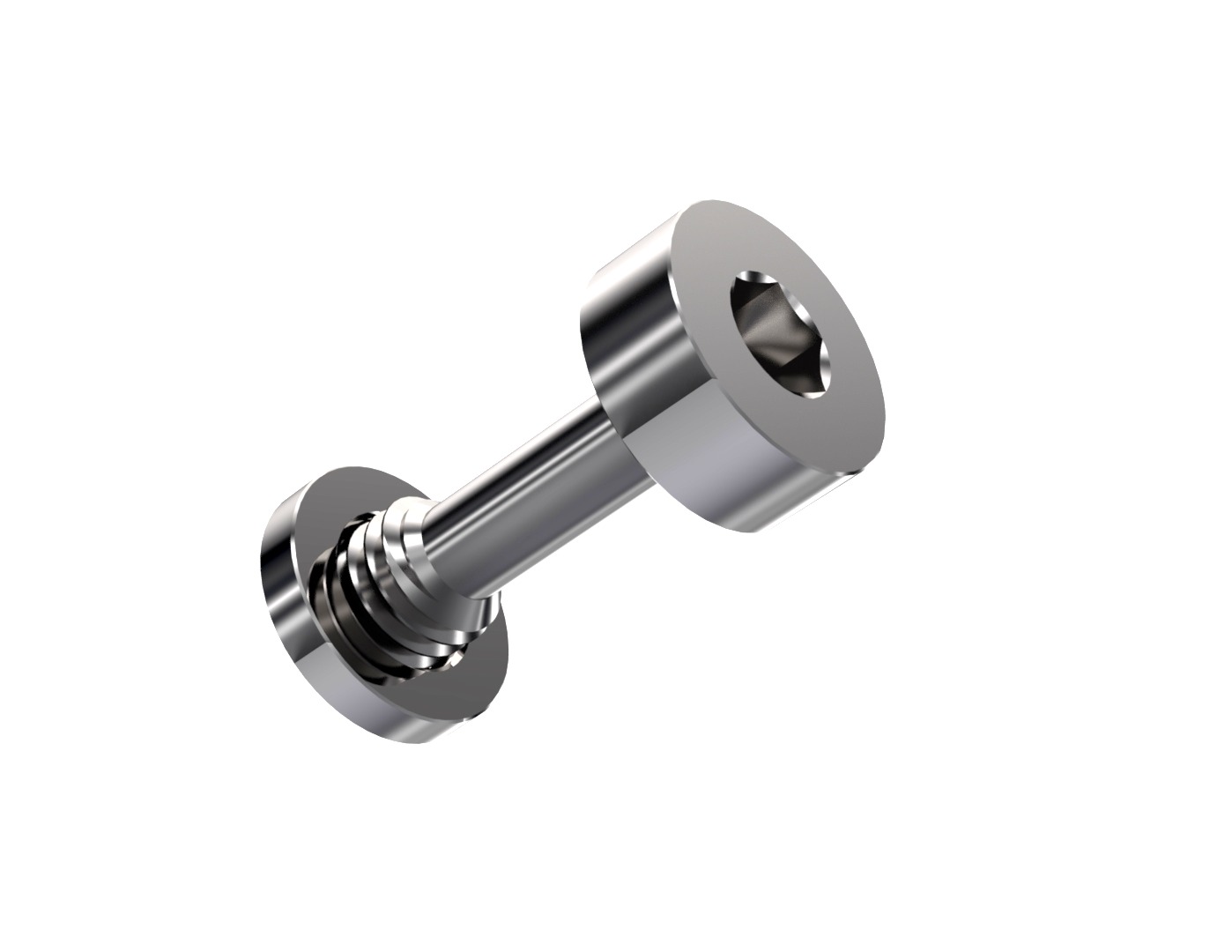

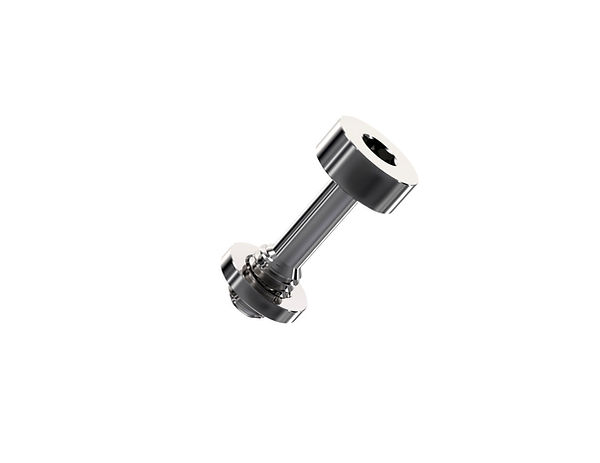

AH0022-A4 Captive Screws Hexagon Socket Cap Head With Threaded Washer, stainless steel 316

A captive screw is a type of fastener designed to remain attached to a component, even when loosened. It typically has a threaded shank and a head, ensuring it doesn't fully detach from the object it secures. This design helps prevent loss or misplacement of the screw during maintenance or assembly.

Please select your thread size to activate the dimensional functionality

AH0022-M3.012-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M3

2.2mm

5.5mm

6mm

3mm

12mm

4mm

1mm

2.5mm

Stainless Steel 316

AH0022-M3.016-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M3

2.2mm

5.5mm

6mm

3mm

16mm

4mm

1mm

2.5mm

Stainless Steel 316

AH0022-M3.020-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M3

2.2mm

5.5mm

6mm

3mm

20mm

4mm

1mm

2.5mm

Stainless Steel 316

AH0022-M4.016-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M4

3mm

7mm

8mm

4mm

16mm

5mm

1.2mm

3mm

Stainless Steel 316

AH0022-M4.020-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M4

3mm

7mm

8mm

4mm

20mm

5mm

1.2mm

3mm

Stainless Steel 316

AH0022-M4.025-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M4

3mm

7mm

8mm

4mm

25mm

5mm

1.2mm

3mm

Stainless Steel 316

AH0022-M4.030-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M4

3mm

7mm

8mm

4mm

30mm

5mm

1.2mm

3mm

Stainless Steel 316

AH0022-M5.012-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M5

3.9mm

8.5mm

10mm

5mm

12mm

6mm

1.5mm

4mm

Stainless Steel 316

AH0022-M5.016-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M5

3.9mm

8.5mm

10mm

5mm

16mm

6mm

1.5mm

4mm

Stainless Steel 316

AH0022-M5.020-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M5

3.9mm

8.5mm

10mm

5mm

20mm

6mm

1.5mm

4mm

Stainless Steel 316

AH0022-M5.025-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M5

3.9mm

8.5mm

10mm

5mm

25mm

6mm

1.5mm

4mm

Stainless Steel 316

AH0022-M6.012-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M6

4.5mm

10mm

12mm

6mm

12mm

8mm

1.6mm

5mm

Stainless Steel 316

AH0022-M6.016-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M6

4.5mm

10mm

12mm

6mm

16mm

8mm

1.6mm

5mm

Stainless Steel 316

AH0022-M6.020-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M6

4.5mm

10mm

12mm

6mm

20mm

8mm

1.6mm

5mm

Stainless Steel 316

AH0022-M6.025-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M6

4.5mm

10mm

12mm

6mm

25mm

8mm

1.6mm

5mm

Stainless Steel 316

AH0022-M6.030-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M6

4.5mm

10mm

12mm

6mm

30mm

8mm

1.6mm

5mm

Stainless Steel 316

AH0022-M6.040-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M6

4.5mm

10mm

12mm

6mm

40mm

8mm

1.6mm

5mm

Stainless Steel 316

AH0022-M8.016-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M8

6.3mm

13mm

16mm

8mm

16mm

10mm

2mm

6mm

Stainless Steel 316

AH0022-M8.020-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M8

6.3mm

13mm

16mm

8mm

20mm

10mm

2mm

6mm

Stainless Steel 316

AH0022-M8.025-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M8

6.3mm

13mm

16mm

8mm

25mm

10mm

2mm

6mm

Stainless Steel 316

AH0022-M8.030-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M8

6.3mm

13mm

16mm

8mm

30mm

10mm

2mm

6mm

Stainless Steel 316

AH0022-M8.040-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M8

6.3mm

13mm

16mm

8mm

40mm

10mm

2mm

6mm

Stainless Steel 316

AH0022-M10.025-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M10

7.5mm

16mm

20mm

10mm

25mm

12.5mm

3mm

8mm

Stainless Steel 316

AH0022-M10.040-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M10

7.5mm

16mm

20mm

10mm

40mm

12.5mm

3mm

8mm

Stainless Steel 316

AH0022-M10.030-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M10

7.5mm

16mm

20mm

10mm

30mm

12.5mm

3mm

8mm

Stainless Steel 316

AH0022-M12.030-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M12

8mm

18mm

24mm

12mm

30mm

15mm

3.5mm

10mm

Stainless Steel 316

AH0022-M12.040-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M12

8mm

18mm

24mm

12mm

40mm

15mm

3.5mm

10mm

Stainless Steel 316

AH0022-M12.050-A4

Button

Thread Size D1:

Captive Diameter D2:

Head Diameter D3:

Washer Diameter D4:

Head Length H1:

Length L1:

Thread Length L2:

Washer Length L3:

Hexagon Across Flats A/F:

Material:

M12

8mm

18mm

24mm

12mm

50mm

15mm

3.5mm

10mm

Stainless Steel 316
