AH0021-A4 Captive Screws Hexagon Socket Cap Head
stainless steel 316

A captive screw is a type of fastener designed to remain attached to a component, even when loosened. It typically has a threaded shank and a head, ensuring it doesn't fully detach from the object it secures. This design helps prevent loss or misplacement of the screw during maintenance or assembly.

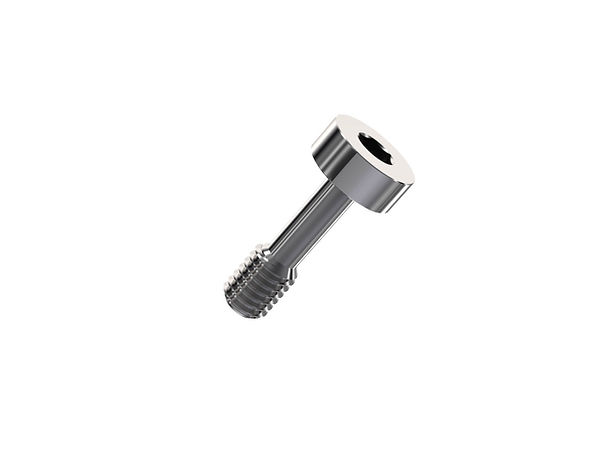

AH0021-A4 Captive Screws Hexagon Socket Cap Head  stainless steel 316
AH0021-A4 Captive Screws Hexagon Socket Cap Head  stainless steel 316

Please select your thread size to activate the dimensional functionality

AH0021-M3.012-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M3

2.2mm

5.5mm

3mm

12mm

4mm

2.5mm

Stainless Steel 316

AH0021-M3.016-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M3

2.2mm

5.5mm

3mm

16mm

4mm

2.5mm

Stainless Steel 316

AH0021-M3.020-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M3

2.2mm

5.5mm

3mm

20mm

4mm

2.5mm

Stainless Steel 316

AH0021-M4.016-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M4

3mm

7mm

4mm

16mm

5mm

3mm

Stainless Steel 316

AH0021-M4.020-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M4

3mm

7mm

4mm

20mm

5mm

3mm

Stainless Steel 316

AH0021-M4.025-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M4

3mm

7mm

4mm

25mm

5mm

3mm

Stainless Steel 316

AH0021-M4.030-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M4

3mm

7mm

4mm

30mm

5mm

3mm

Stainless Steel 316

AH0021-M5.012-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M5

3.9mm

8.5mm

5mm

12mm

6mm

4mm

Stainless Steel 316

AH0021-M5.016-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M5

3.9mm

8.5mm

5mm

16mm

6mm

4mm

Stainless Steel 316

AH0021-M5.020-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M5

3.9mm

8.5mm

5mm

20mm

6mm

4mm

Stainless Steel 316

AH0021-M5.025-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M5

3.9mm

8.5mm

5mm

25mm

6mm

4mm

Stainless Steel 316

AH0021-M6.012-A4

Button

Thread Size D1:

​

Captive Diameter D2

​

Head Diameter D3:

​

Head Length H1:

​

Length L1:

​

Thread Length L2:

​

Hexagon Across Flats A/F:

​

Material:

M6

4.5mm

10mm

6mm

12mm

8mm

5mm

Stainless Steel 316
