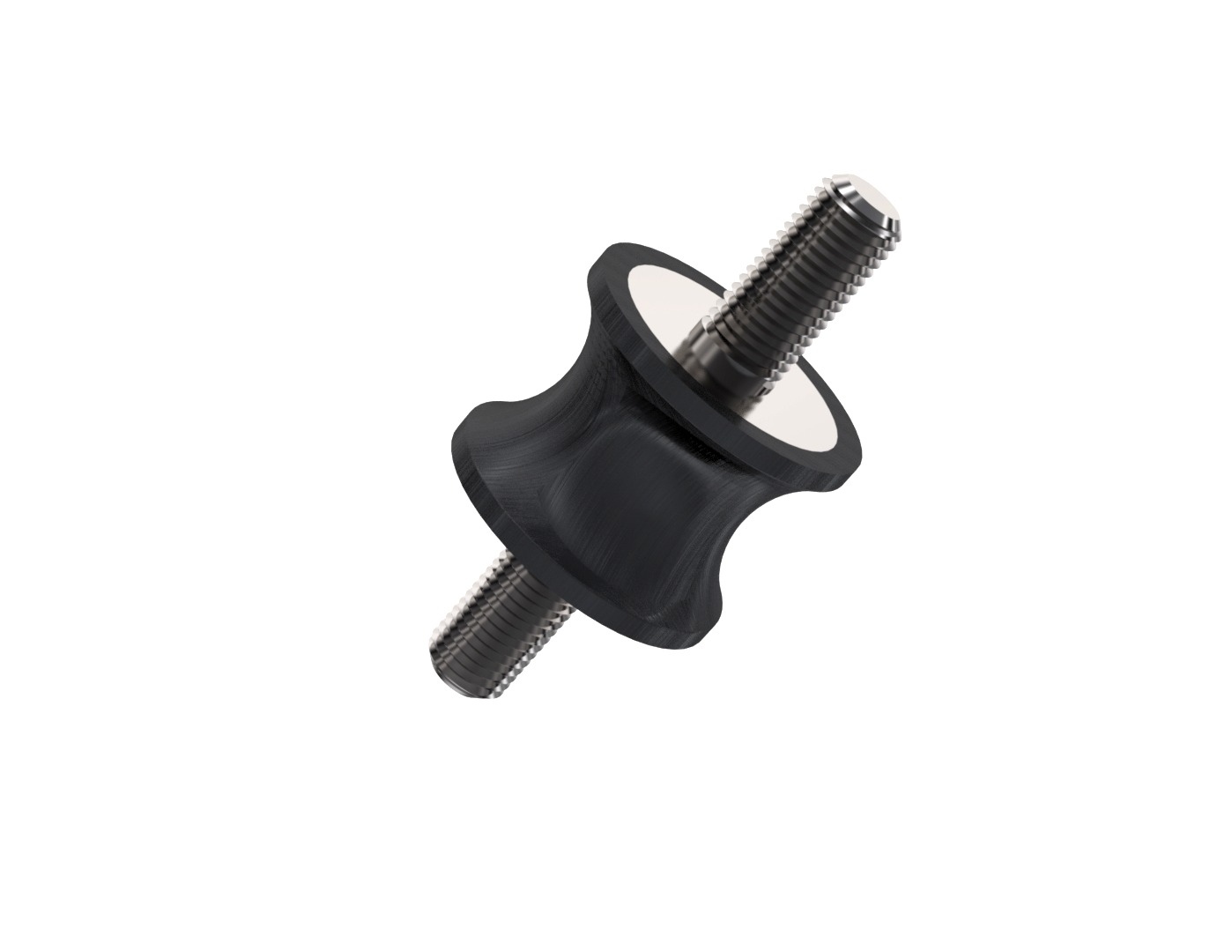

Anti Vibration Mounts Rubber Buffer Bobbin Male to Male

Material Steel Zinc plated - Rubber 55 Shore A,

Temperature range:-30 °C up to +80 °C

Anti Vibration Mounts Rubber Buffer Bobbin Male to Male

Anti Vibration Mounts Rubber Buffer Bobbin Male to Male

Anti Vibration Mounts Rubber Buffer Bobbin Male to Male

Please select your D size to activate the dimensional functionality

AH0025-M4.010-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

10mm

8mm

M4

10mm

13mm

55 Shore A

AH0025-M4.015-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

15mm

12mm

M4

15mm

13mm

55 Shore A

AH0025-M6.020-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

20mm

14mm

M6

15mm

18mm

55 Shore A

AH0025-M8.030-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

30mm

22mm

M8

20mm

23mm

55 Shore A

AH0025-M8.040-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

40mm

33mm

M8

30mm

23mm

55 Shore A

AH0025-M8.040-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

40mm

20mm

M8

48mm

23mm

55 Shore A

AH0025-M10.050-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

50mm

40mm

M10

30mm

33mm

55 Shore A

AH0025-M12.075-S55

D mm:

D1 mm:

D2 mm:

H mm:

L mm:

Hardness:

75mm

50mm

M12

40mm

37mm

55 Shore A
